Overview

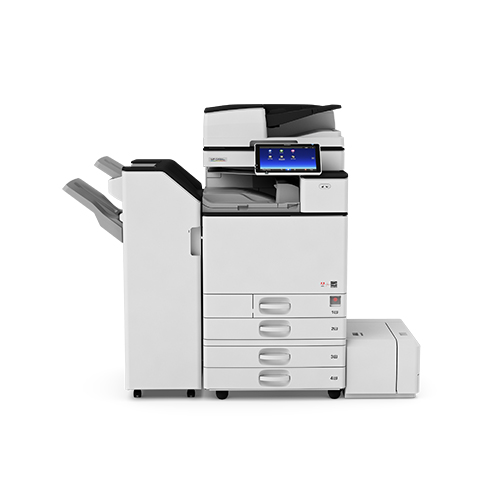

A model that offers superb reliability, output quality and enables constant productivity, this forms part of our flagship A3 colour Smart MFP range. Designed to deliver within high output, multipurpose environments – and featuring our renowned Smart Operation Panel – it’s designed to help you increase productivity thanks to rich functionality. It also showcases an Automatic Reverse Document Feeder, a 45ppm output speed for higher print volume offices and a new Intel processor. With staple-less finishing, you can keep your environmental impact low, and quick recovery from sleep mode and a low TEC value, means you save on energy costs and CO2 impact and still maintain a high performance.
Features and benefits
Thanks to a multitude of connectivity, you can operate your MFP from mobile devices, integrate with independent smart phones and tablets – and enable access and printing from virtually anywhere. The 10.1 inch colour Smart Operations Panel makes day-to-day working so much smoother – and mobile and flexible options much more intuitive. In fact, you can even scan and save documents in full colour directly to email, portable media and folders, which helps speed up document creation and output. And all this connectivity integrates easily into your current machine fleet, so you not only maximise fleet productivity, but improve overall workflow too.
Specifications
GENERAL | |
Warm-up time | 24 seconds |
First output speed – Full colour | 5.7 seconds |
First output speed – B/W | 4 seconds |
Continuous output speed – Full colour | 45 pages per minute |
Continuous output speed – B/W | 45 pages per minute |
Memory | 4 GB |
HDD | 250 GB |
Dimensions (W x D x H) – With ARDF | 587 x 685 x 913 mm |
Dimensions (W x D x H) – With SPDF | 587 x 685 x 963 mm |
Weight – With ARDF | 97.7 kg |
Weight – With SPDF | 103.4 kg |
Power source | 220 – 240 V, 50/60 Hz |
CONSUMABLES | |
Toner capacity – Black | 33,000 prints |
Toner capacity – Cyan/Magenta/Yellow | 22,500 prints |
Toner capacity | Consumable yield figures are based on 2 p, j 5% coverage on A4 |
COPIER | |
Multiple copying | Up to 999 copies |
Resolution | 600 dpi/4 bit |
Zoom | From 25% to 400% in 1% steps |
ECOLOGY | |
Power consumption – Maximum | 1,850 W |
Power consumption – Ready mode | 55.1 W |
Power consumption – Sleep mode | Less than 0.89 W |
Power consumption – TEC (Typical Electricity Consumption) | 1.8 kWh |
FAX | |
Circuit | PSTN, PBX |
Compatibility | ITU-T (CCITT) G3 |
Resolution – Standard | 8 x 3.85 line/mm, 200 x 100 dpi, 8 x 7.7 line/mm, 200 x 200 dpi |
Resolution – Option | 8 x 15.4 line/mm, 400 x 400 dpi, 16 x 15.4 line/mm, 400 x 400 dpi |
Transmission speed – G3 | 2 second(s) (200 x 100 dpi, JBIG), 3 second(s) (200 x 100 dpi, MMR) |
Modem speed – Maximum | 33.6 Kbps |
PAPER HANDLING | |
Recommended paper size – Standard paper tray(s) | A3, A4, A5, A6, B4, B5, B6 |
Paper input capacity – Maximum | 4,700 sheets |
Paper output capacity – Maximum | 3,625 sheets |
Paper weight | 52 – 300 g/m² |
PRINTER | |
Printer language – Standard | PCL5c, PCL6(XL), PostScript 3 (emulation), PDF direct (emulation) |
Printer language – Option | Genuine Adobe ®PostScript®3™, XPS, IPDS, PictBridge, PDF Direct from Adobe® |
Print resolution – Maximum | 1,200 x 1,200 dpi |
Interface – Standard | USB Host I/F, Ethernet 10 base-T/100 base-TX/1000 base-T |
Interface – Option | USB 2.0, Wireless LAN (IEEE 802.11a/b/g/n), Bluetooth, Additional NIC (2nd port), Bi-directional IEEE 1284/ECP |
Interface: standard | USB Host I/F, 10 base-T/100 base-TX/1000 base-T, 10 base-T/100 base-TX, USB2.0 Type B |
Interface: option | USB 2.0 Wireless, LAN (IEE 802.11a/b/g/n), Bluetooth, Additional NIC (2nd port), Bi-directional IEEE 1284/ECP, Wireless LAN (IEEE 802.11 a/b/g/n/ac) |
Windows® environments | Windows® 7, Windows® 8.1, Windows® 10, Windows® Server 2008, Windows® Server 2008R2, Windows® Server 2012, Windows® Server 2016 |
Mac OS environments | Macintosh OS X v10.9 or later |
UNIX environments | UNIX Sun® Solaris, HP-UX, SCO OpenServer, RedHat® Linux Enterprise, IBM® AIX, IBM® System i5™ HPT, XenDesktop |
SCANNER | |
Scanning speed – ARDF | Max. 80 originals per minute |
Scanning speed – SPDF | Max. 110 (simplex)/180 (duplex) originals per minute |
Resolution – Maximum | 1,200 dpi (Twain) |
Original size | A3, A4, A5, B4, B5, B6 |
Bundled drivers | Network TWAIN |
Scan to | E-mail, SMB, FTP, URL |
