SP 230 compact desktop

printer specifications

With SP 230, you have quiet, compact printers that are easy to

maintain and cost you less. They fit comfortably into small spaces and

give you complete control of your work, from simple set up to high

speed output. And with wired and wireless connectivity for easy

collaboration and a user-friendly LCD interface, printing is easy.

All printers in this series feature;

• The lowest noise level in their class - less than 49B(A)
• Print 30 pages per minute
• SP 230DNw offers fast, simple printing at lower costs
• SP 230SFNw is a compact 4-1 solution

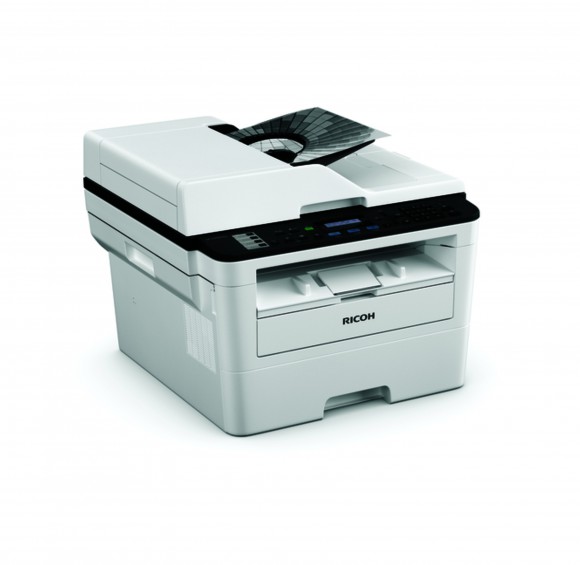

SP 230DNw/ SP 230SFNw

MAIN SPECIFICATIONS

SP 230DNw SP 230SFNw

GENERAL

Warm-up time (seconds) 28

First output speed: B/W

(seconds)

8.5

Continuous output speed (ppm) 30

Memory: maximum (MB) 128 256

Dimensions: W x D x H (mm) 356 x 360 x 183 410 x 399 x 319

Weight (kg) 7.3 11.8

Power source 220 - 240 V, 50/60 Hz

COPIER

Copying process Laser beam scanning and electro-photographic printing

Multiple copying Up to 99 copies

Resolution 600 x 600 dpi, 1,200 x 1,200 dpi

Enlargement/reduction 25 - 400%

PRINTER

Printing process Dry, single component & electro-photographic printing

Printer language GDI

Print resolution: maximum (dpi) 600 x 2,400 dpi equivalent

Interface USB 2.0, Ethernet 10 base-T/100 base-TX, Wireless LAN (IEEE 802.11b/g/n)

Mobile printing capability Apple AirPrint™, Mopria, Google Cloud Print

Windows® environments Windows® 7/8.1/10, Windows® Server 2008/2012/2012R2/2016

Mac OS environments Macintosh OS X v10.11 - v10.13

Other supported environments Linux environment

SCANNER

Scanning: B/W (ipm) - 22

Scanning: full colour (ipm) - 7

Resolution: maximum (dpi) - 1,200

FAX

Compatibility G3

Transmission speed (seconds) 2.5

Modem speed: maximum (Kbps) 33.6

PAPER HANDLING

Recommended paper size A4, A5, A6, B4

Paper input: maximum (sheets) 250

Paper output: standard (sheets) 150 120

Paper weight (g/m²) 60 - 163

ECOLOGY

Power consumption: max. (kW) Less than 1.104

Power consumption: operation

(kW)

460 440

Power consumption: ready (W) Less than 48 Less than 42

Power consumption: sleep (W) Less than 6 Less than 6.2

SOFTWARE

@Remote, Streamline NX v3, device management only (not embedded), Device Manager NX

CONSUMABLES

Starter toner (prints) 700

Drum (sheets) 12,000

Toner (regular yield) (prints) 1,200

Toner (high yield) (prints) 3,000

Consumable yield measuring

method ISO/IEC 19752
