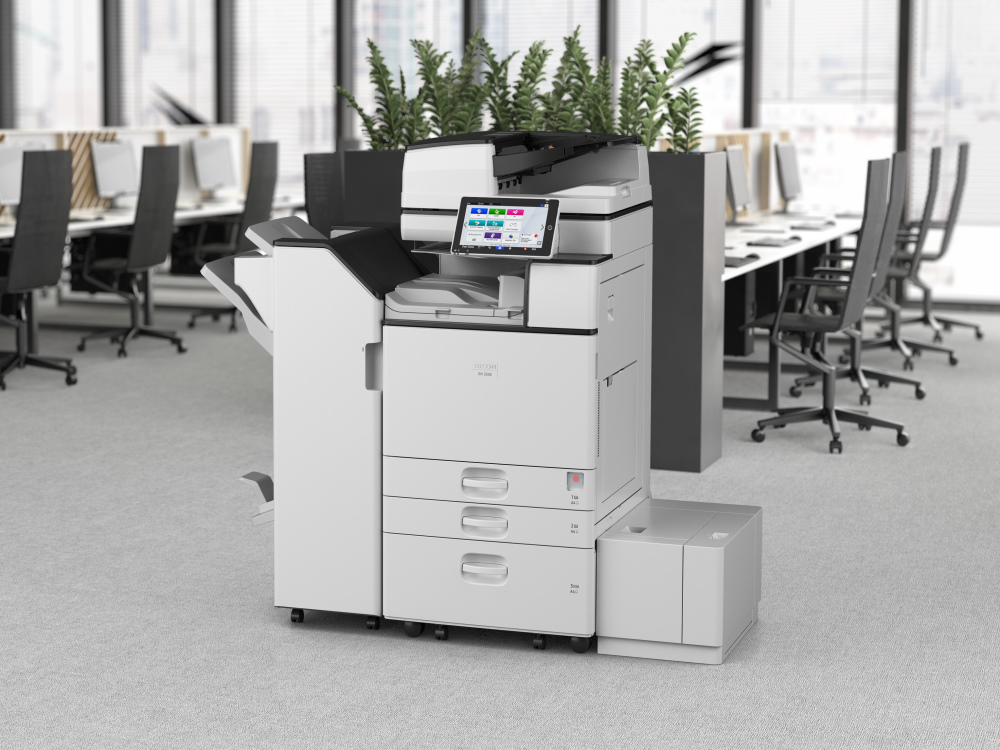

RICOH IM 5000A

RICOH IM 5000A

Download brochure

Work faster and with ease

The IM 5000A has a first speed output of 2.7 seconds, a continuous speed output of 50ppm and a SPDF capacity of 220 sheets

  • With Ricoh's Always Current Technology you can access applications, the latest features and upgrade s at the touch of a button
  • Make light work of integrating document workflows on different devices and working within cloud-based apps, thanks to Ricoh’s Smart Integration Platform
  • The IM 5000A is easy to use because of the Smart Operation Panel
  • The Smart Device Connector means you can use the IM 5000A without even touching it
  • The IM 5000A is the only device you need for efficient scanning, as well as numerous finishing options - take your printing and scanning to the next level


GENERAL
Warm-up time19.1 seconds
First output speed: B/W2.7 seconds
Continuous output speed50 ppm
Memory: maximum2 GB
HDD: maximum320 GB
SPDF capacity220 sheets
Weight - with ARDF71 kg
Weight - with SPDF76.5 kg
Dimensions: W x D x H - with ARDF587 x 673 x 913 mm
Dimensions: W x D x H - with SPDF587 x 673 x 963 mm
Power source220 - 240 V, 50 - 60 Hz
COPIER
Multiple copyingUp to 999 copies
Resolution600 dpi
ZoomFrom 25% to 400% in 1% steps
PRINTER
CPUIntel® Atom Processor ApolloLake-I 1.36 GHz
Printer language: standardPCL5e, PCL6, PostScript 3 (emulation), PDF direct (emulation)
Printer language: optionGenuine Adobe® PostScript®3™, IPDS, PDF Direct from Adobe®
Print resolution: maximum1,200 x 1,200 dpi
Network interface: standardEthernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Device I/F Type B
Network interface: optionBi-directional IEEE 1284, Wireless LAN (IEEE 802.11a/b/g/n), Additional NIC (2nd port)
Mobile printing capabilityApple AirPrint, Mopria®, NFC, Ricoh Smart Device Connector
Windows® environmentsWindows® 8.1, Windows® 10, Windows® Server 2012, Windows® Server 2012R2, Windows® Server 2016, Windows® Server 2019
Mac OS environmentsMacintosh OS X v10.13 or later
UNIX environmentsUNIX Sun® Solaris, HP-UX, SCO OpenServer, RedHat® Linux, IBM® AIX
UNIX environments - Citrix XenApp7.6 LTSR, 7.15 LTSR, VirtualApps/Desktops 7 1912 LTSR and later
SAP® environmentsSAP® R/3®, SAP® S/4®
Other supported environmentsNDPS Gateway, AS/400® using OS/400 Host Print Transform
SCANNER
Scanning speed: ARDF80 ipm (200/300 dpi)
Scanning speed: SPDF120 ipm (simplex)/240 ipm (duplex)
Resolution: maximum1,200 dpi
File formatsSingle Page TIFF, Single page JPEG, Single page PDF, Single page High compression PDF, Single page PDF/A, Multi page TIFF, Multi page PDF, Multi page High compression PDF, Multi page PDF/A
Scan modesE-mail, USB, SD Card, URL, FTP, SMB
FAX
CircuitPSTN, PBX
Transmission speed2 seconds
Modem speed: maximum33.6 Kbps
Resolution: standard8x3.85 line̸ mm, 200x100 dpi, 8x7.7 line̸ mm, 200x200 dpi
Resolution: option16x15.4 line/mm, 400x400 dpi
Compression methodMH, MR, MMR, JBIG
Memory: standard4 MB, (320 pages)
Memory: maximum60 MB, (4,800 pages)
PAPER HANDLING
Recommended paper size - Standard paper tray(s): A3, A4, A5, A6, B4, B5, B6, Envelopes
Recommended paper size - Optional paper tray(s): A3, A4, A5, A6, B4, B5, B6, Envelopes
Recommended paper size - Bypass tray: A3, A4, A5, A6, B4, B5, B6, Envelopes, Custom Size paper
Paper input: standard1,200 sheets
Paper input: maximum4,700 sheets
Paper output: standard500 sheets
Paper output: maximum3,625 sheets
Paper weight - Trays: 60 - 300 g̸ m²
Paper weight - Bypass: 52 - 300 g̸ m²
Paper weight - Duplex: 52 - 256 g̸ m²
Paper typesPlain paper, Recycle paper, Special paper, Color paper, Letterhead, Cardstock, Preprinted paper, Bond paper, Coated paper, Envelope, Label paper, OHP
ECOLOGY
Power consumption: max.1,780W
Power consumption: operation767 W
Power consumption: ready64.7 W
Power consumption: sleep0.57 W
TEC*0.63 kWh⁄week
OUTPUT TRAYS AND FINISHER OPTIONS
1x 550-sheet paper tray - Paper size: A3, A4, A5, A6, B4, B5, B6
1x 550-sheet paper tray - Paper weight: 60-300 g/m²
2x 550-sheet paper tray - Paper size: A3, A4, A5, A6, B4, B5, B6
2x 550-sheet paper tray - Paper weight: 60-300 g/m²
2,000-sheet Large capacity tray - Paper size: A4
2,000-sheet Large capacity tray - Paper weight: 60-300 g/m²
1,500-sheet side Large capacity tray - Paper size: A4, B5
1,500-sheet side Large capacity tray - Paper weight: 60-300 g/m²
1,000-sheet Hybrid finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6
1,000-sheet Hybrid finisher - Paper weight: 52-300 g/m²
1,000-sheet Hybrid finisher1,000 sheets
1,000-sheet Hybrid finisher - Staple capacity: 50 sheets
1,000-sheet Hybrid finisher - Staple paper size: A3, A4, B4, B5
1,000-sheet Hybrid finisher - Staple paper weight: 52-105 g/m²
1,000-sheet Hybrid finisher - Staple positions: Top, Bottom, 2 Staples
3,000-sheet finisher - Paper size: A3, A4, A5, A6, B4, B5, B6
3,000-sheet finisher - Paper weight: 52-300 g/m²
3,000-sheet finisher - Stack capacity: 3,000 sheets
3,000-sheet finisher - Staple capacity: 50 sheets
3,000-sheet finisher - Staple paper size: A3, A4, B4, B5
3,000-sheet finisher - Staple paper weight: 52-105 g/m²
3,000-sheet finisher - Staple positions: Top, Bottom, 2 staples, Top-slant
1,000-sheet Booklet finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6
1,000-sheet Booklet finisher - Paper weight: 52-300 g/m²
1,000-sheet Booklet finisher - Stack capacity: 1,000 sheets
1,000-sheet Booklet finisher - Staple capacity: 50 sheets
1,000-sheet Booklet finisher - Staple paper size: A3, A4, B4, B5
1,000-sheet Booklet finisher - Staple paper weight: 52-105 g/m²
1,000-sheet Booklet finisher - Staple positions: Top, Bottom, 2 staples, Booklet
2,000-sheet Booklet finisher - Paper size: A3, A4, A5, A6, B4, B5, B6
2,000-sheet Booklet finisher - Paper weight: 52-300 g/m²
2,000-sheet Booklet finisher - Stack capacity: 2,000 sheets
2,000-sheet Booklet finisher - Staple capacity: 50 sheets
2,000-sheet Booklet finisher - Staple paper size: A3, A4, B4, B5
2,000-sheet Booklet finisher - Staple paper weight: 52-105 g/m²
2,000-sheet Booklet finisher - Staple positions: Top, Bottom, 2 staples, Booklet
Paper size: A3, A4, B4, B5
Paper weight: 52-300 g/m²
Stack capacity: 250 sheets
Staple capacity: 5 sheets
Staple paper size: A3, A4, B4, B5
Staple paper weight: 64-80 g/m²
Staple positions: Top
500-sheet Internal finisher - Paper size: A3, A4, A5, A6, B4, B5, B6
500-sheet Internal finisher - Paper weight: 52-300 g/m²
500-sheet Internal finisher - Stack capacity: 500 sheets
500-sheet Internal finisher - Staple capacity: 50 sheets
500-sheet Internal finisher - Staple paper size: A3, A4, B4, B5
500-sheet Internal finisher - Staple paper weight: 52-105 g/m²
500-sheet Internal finisher - Staple positions: Top, Bottom, 2 staples
Internal shift tray - Tray capacity: 250 sheets
Internal shift tray - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6
Internal shift tray - Paper weight: 52-300 g/m²
One-bin tray - Tray capacity: 125 sheets
One-bin tray - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6
One-bin tray - Paper weight: 52-300 g/m²
CONSUMABLES
Toner (black)37,000 prints
